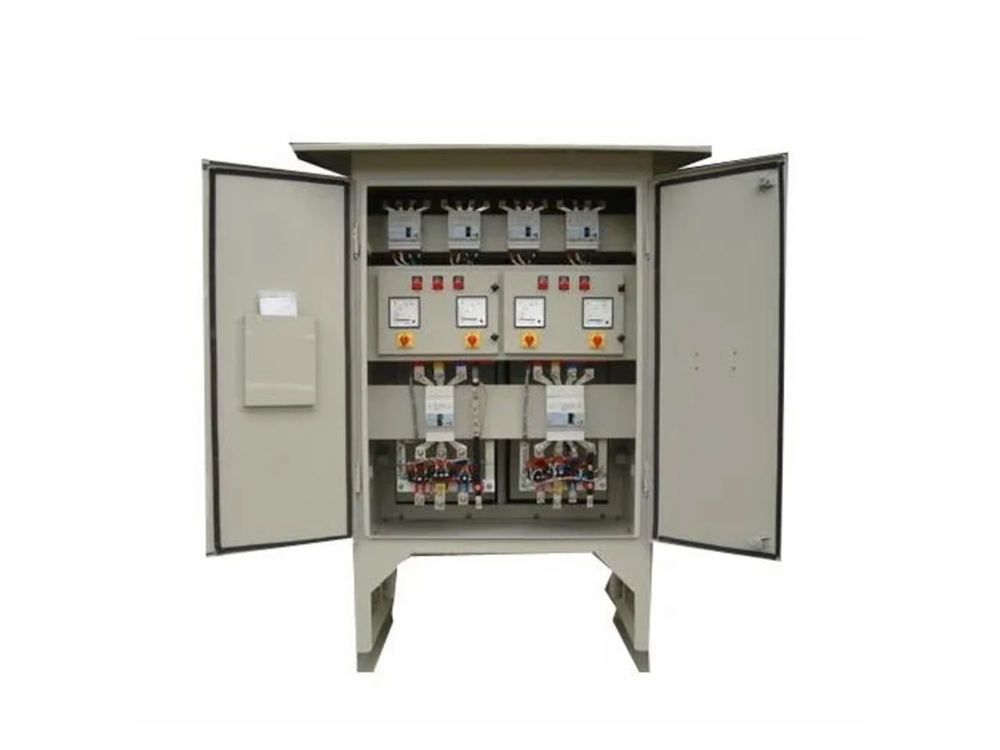

The Feeder Pillar Panel are basically another Version of Power Distribution Panel it also Power Breaker Panel which is very first set of Switching device used for Power distribution. Simply, Feeder Pillar Panel is Stand Mounted Type enclosure Box Having Four Site of Canopy with Higher IP Rating with Epoxy Paint on the Enclosure, which protect the Inside Switcher used for Power distribution Purpose. A feeder pillar panel provide isolation and Contact to electrical distribution components.
Application: Protection and Control Power Distribution System. |
AC Rating Volts: 0 - 500V. |
AC Rating Amps: 100 - 1000A. ( Based on customer's requirement.) |
AC Rating Frequency: 50Hz. |
Rated Insulated Voltage: 690V. |
Temp. Rise Up to: 350C Rise over 500C ambient. |
Degree of Protection: IP 52, 54, 55, 65. |
Power Busbar Size: Al. or Cu. Busbar. |
Over current Protection: Properly. |
Enclosure Painting: 7 tank Powder Coated Paint and as per Client's requirement. |
Panel Mounting: Floor / Ground Mounted, Wall Mounted, Mounted on Angle Frame. |
Current Monitoring: Possible. |
Phase Monitoring: Configuration: Possible. |
Type Test performance: Short Circuit with Stand temp. rise with stand, Degree of Protection. |
