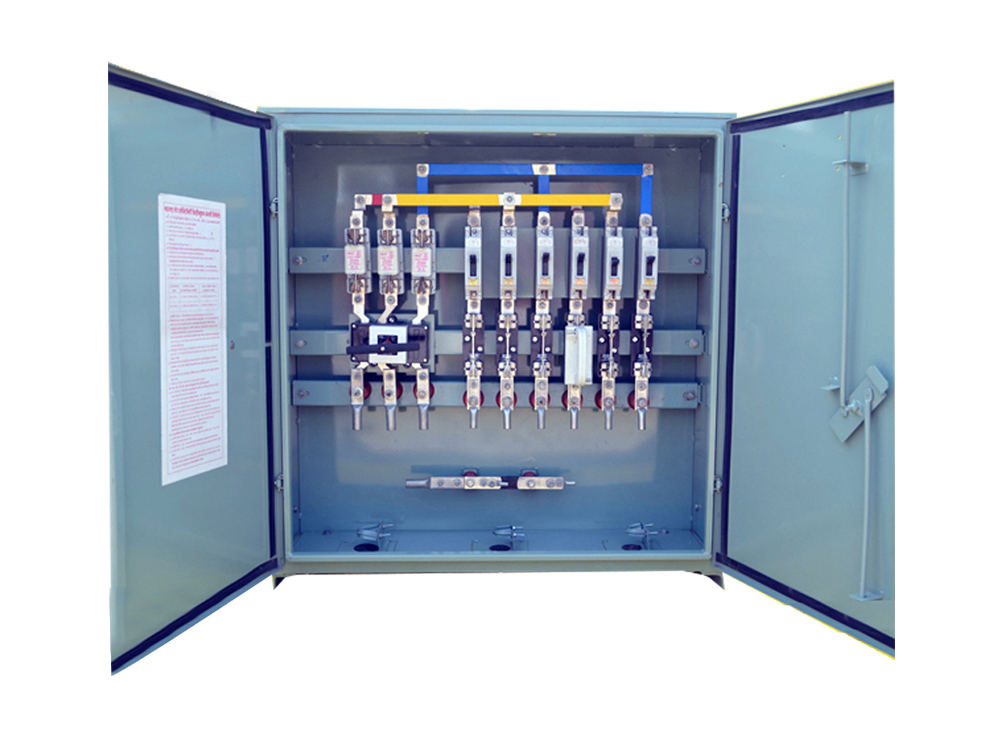

ACDB Stand for Alternative Current Distribution Board and DCDB Stand for Direct Current Distribution Board. DCDB Facilities Direct Current from Solar Panel to Inverter and ACDB Distributed Power Supply from Inverter to the Grid. These panels include circuit breakers to prevent overloads and short circuits. MCBs shut off the flow of electricity when it exceeds safe levels, protecting system components and ensuring continuous power distribution.
 Application: Control ,Protection and Distribution of the Solar power System
|
|
AC Rating Volts: 0 - 500V |
|
AC Rating Amps: 100 - 2500A ( Based on customer's requirement.). |
|
AC Rating Frequency: 50Hz |
|
Rated Insulated Voltage: 690V |
|
Temp. Rise Up to: 350C Rise over 500C ambient. |
|
Degree of Protection: IP 52, 54, 55, 65 |
|
Power Busbar Size: Al. or Cu. Busbar. |
|
Over current Protection: Properly |
|
Enclosure Painting: 7 tank Powder Coated Paint and as per Client's requirement |
|
Panel Mounting: Floor / Ground Mounted, Wall Mounted, Mounted on Angle Frame. |
|
Current Monitoring: Possible. |
|
Phase Monitoring: Possible. |
|
Configuration: Based on customer's requirement. |
|
Type Test performance: Short Circuit with Stand temp. rise with stand, Degree of Protection.
|
